Descrizione
In questo episodio del tutorial di Arduino, impareremo a usare il display TFT touchscreen. Vedremo come installare le librerie necessarie per farlo funzionare. Realizzeremo, inoltre, alcuni semplici esempi di sketch e circuiti per disegnare sullo schermo e utilizzare il touchscreen.
#include <MCUFRIEND_kbv.h> #define MARGIN 10#define INPUT_PIN A15#define THRESHOLD 3 #define BLACK 0x0000#define BLUE 0x001F#define RED 0xF800#define GREEN 0x07E0#define CYAN 0x07FF#define MAGENTA 0xF81F#define YELLOW 0xFFE0#define WHITE 0xFFFF MCUFRIEND_kbv tft;uint16_t colors[] = {RED, YELLOW, GREEN, CYAN, BLUE, MAGENTA};int colorsLength = sizeof(colors) / sizeof(uint16_t);int sliderWidth;int colorWidth;int lastValue = -1; void setup() { tft.begin(tft.readID()); tft.setRotation(1); sliderWidth = tft.width() - 2 * MARGIN; colorWidth = sliderWidth / colorsLength; initScreen();} void loop() { int value = analogRead(INPUT_PIN); if (value < lastValue - THRESHOLD || value > lastValue + THRESHOLD) { int cursor = map(value, 0, 1023, 0, sliderWidth); int colorIndex = selectColor(cursor); if (colorIndex != -1) { drawCursor(colors[colorIndex], cursor); printValue(colors[colorIndex], "INPUT", String(value)); } lastValue = value; } delay(1);} void initScreen() { tft.fillScreen(BLACK); tft.setCursor(MARGIN, MARGIN); tft.print("Tutorial di Arduino"); tft.setCursor(MARGIN, MARGIN+15); tft.setTextColor(YELLOW); tft.setTextSize(2); tft.print("Display TFT Touch"); tft.drawLine(MARGIN, MARGIN + 40, tft.width() - MARGIN, MARGIN + 40, WHITE); tft.fillRect(MARGIN, 122, sliderWidth, 2, WHITE); for (int i = 0; i < colorsLength; i++) { tft.fillRect(MARGIN + i * colorWidth, 117, 2, 5, WHITE); tft.fillRect(MARGIN + i * colorWidth, 130, colorWidth, 30, colors[i]); } tft.fillRect(MARGIN + colorsLength * colorWidth - 2, 117, 2, 5, WHITE);} int selectColor(int cursor) { for (int i = 0; i < colorsLength; i++) { if (cursor >= i * colorWidth && cursor < (i + 1) * colorWidth) { return i; } } return -1;} void drawCursor(uint16_t color, int cursor) { int pos = MARGIN + cursor; tft.fillRect(0, 85, tft.width(), 26, BLACK); tft.fillRect(pos - 2, 85, 5, 15, color); tft.fillTriangle(pos - 9, 100, pos, 110, pos + 9, 100, color);} void printValue(uint16_t color, String label, String value) { tft.setTextColor(color); tft.setTextSize(3); tft.setCursor(MARGIN, tft.height() - MARGIN - 22); tft.print(label + ": "); tft.fillRect(MARGIN + 125, tft.height() - MARGIN - 23, tft.width(), 25, BLACK); tft.setCursor(MARGIN + 130, tft.height() - MARGIN - 22); tft.print(value);}

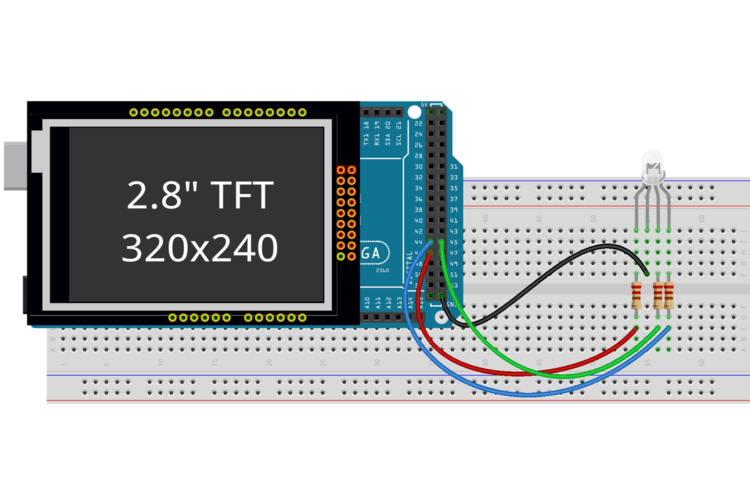

#include <MCUFRIEND_kbv.h>#include <TouchScreen.h> #define MARGIN 10#define RED_PIN 46#define GREEN_PIN 45#define BLUE_PIN 44 #define BLACK 0x0000#define BLUE 0x001F#define RED 0xF800#define GREEN 0x07E0#define CYAN 0x07FF#define MAGENTA 0xF81F#define YELLOW 0xFFE0#define WHITE 0xFFFF const int XP=8,XM=A2,YP=A3,YM=9; //240x320 ID=0x9595const int TS_LEFT=920,TS_RT=139,TS_TOP=93,TS_BOT=907; MCUFRIEND_kbv tft;TouchScreen touch = TouchScreen(XP, YP, XM, YM, 300);uint16_t colors[] = {RED, YELLOW, GREEN, CYAN, BLUE, MAGENTA};int colorsLength = sizeof(colors) / sizeof(uint16_t);String colorNames[] {"rosso", "giallo", "verde", "ciano", "blu", "magenta"};int sliderWidth;int colorWidth;int lastValue = -1; void setup() { tft.begin(tft.readID()); tft.setRotation(1); sliderWidth = tft.width() - 2 * MARGIN; colorWidth = sliderWidth / colorsLength; initScreen(); pinMode(RED_PIN, OUTPUT); pinMode(GREEN_PIN, OUTPUT); pinMode(BLUE_PIN, OUTPUT);} void loop() { int x, y; bool isTouch = readTouch(x, y); if (isTouch && (x > MARGIN && x < tft.width() - MARGIN && y > 130 && y < 160)) { int colorIndex = selectColor(x - MARGIN); if (colorIndex != -1 && colorIndex != lastValue) { int cursor = colorWidth * (colorIndex + 0.5); drawCursor(colors[colorIndex], cursor); printValue(colors[colorIndex], "OUTPUT", colorNames[colorIndex]); showColor(colors[colorIndex]); } lastValue = colorIndex; } delay(1);} void initScreen() { tft.fillScreen(BLACK); tft.setCursor(MARGIN, MARGIN); tft.print("Tutorial di Arduino"); tft.setCursor(MARGIN, MARGIN+15); tft.setTextColor(YELLOW); tft.setTextSize(2); tft.print("Display TFT Touch"); tft.drawLine(MARGIN, MARGIN + 40, tft.width() - MARGIN, MARGIN + 40, WHITE); tft.fillRect(MARGIN, 122, sliderWidth, 2, WHITE); for (int i = 0; i < colorsLength; i++) { tft.fillRect(MARGIN + i * colorWidth, 117, 2, 5, WHITE); tft.fillRect(MARGIN + i * colorWidth, 130, colorWidth, 30, colors[i]); } tft.fillRect(MARGIN + colorsLength * colorWidth - 2, 117, 2, 5, WHITE); } int selectColor(int cursor) { for (int i = 0; i < colorsLength; i++) { if (cursor >= i * colorWidth && cursor < (i + 1) * colorWidth) { return i; } } return -1;} void drawCursor(uint16_t color, int cursor) { int pos = MARGIN + cursor; tft.fillRect(0, 85, tft.width(), 26, BLACK); tft.fillRect(pos - 2, 85, 5, 15, color); tft.fillTriangle(pos - 9, 100, pos, 110, pos + 9, 100, color);} void printValue(uint16_t color, String label, String value) { tft.setTextColor(color); tft.setTextSize(3); tft.setCursor(MARGIN, tft.height() - MARGIN - 22); tft.print(label + ": "); tft.fillRect(MARGIN + 125, tft.height() - MARGIN - 23, tft.width(), 25, BLACK); tft.setCursor(MARGIN + 130, tft.height() - MARGIN - 22); tft.print(value);} bool readTouch(int &x, int &y) { TSPoint point = touch.getPoint(); pinMode(YP, OUTPUT); pinMode(XM, OUTPUT); digitalWrite(YP, HIGH); digitalWrite(XM, HIGH); if (point.z > 10 && point.z < 1000) { x = map(point.y, TS_TOP, TS_BOT, 0, tft.width()-1); y = map(point.x, TS_RT, TS_LEFT, 0, tft.height()-1); return true; } return false;} void showColor(uint16_t color) { int r = map((color & 0xF800) >> 11, 0, 0x1F, 0, 255); int g = map((color & 0x7E0) >> 5, 0, 0x3F, 0, 255); int b = map(color & 0x1F, 0, 0x1F, 0, 255); analogWrite(RED_PIN, r); analogWrite(GREEN_PIN, g); analogWrite(BLUE_PIN, b);}In qualità di Affiliato Amazon riceviamo un guadagno dagli acquisti idonei
